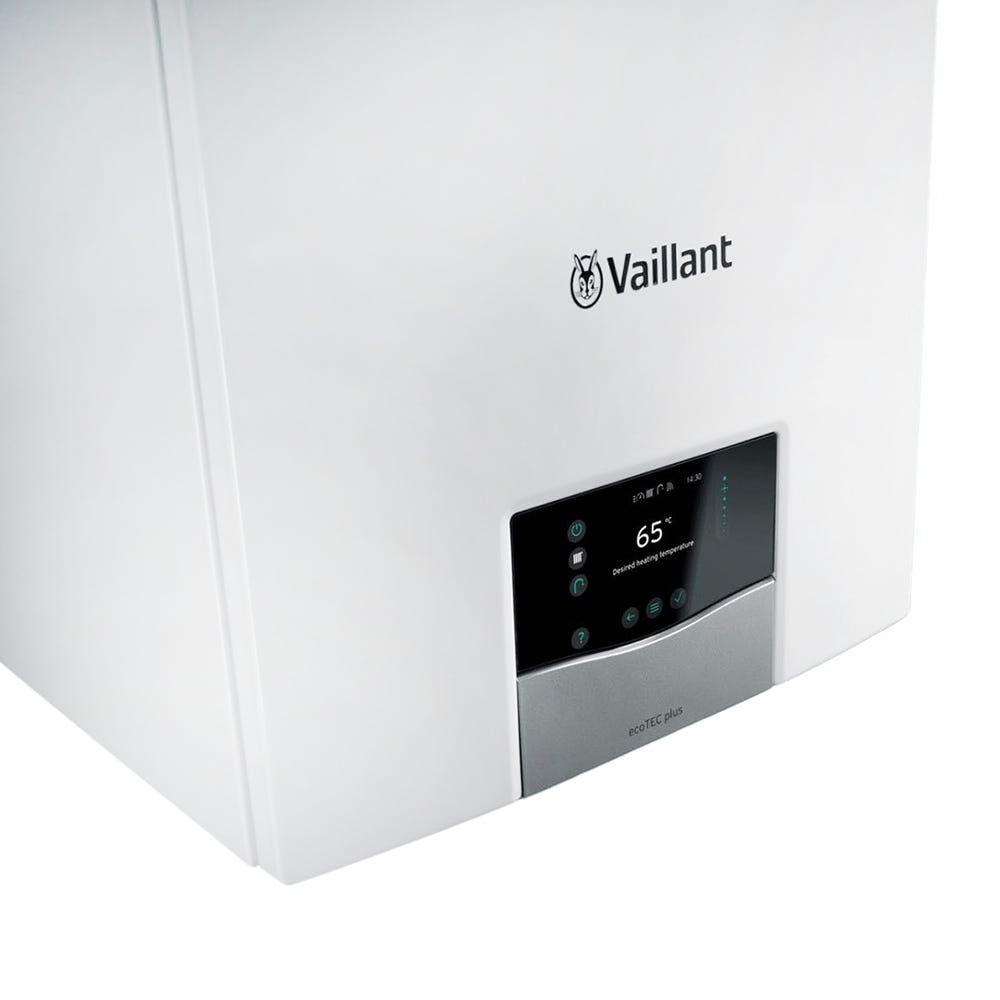

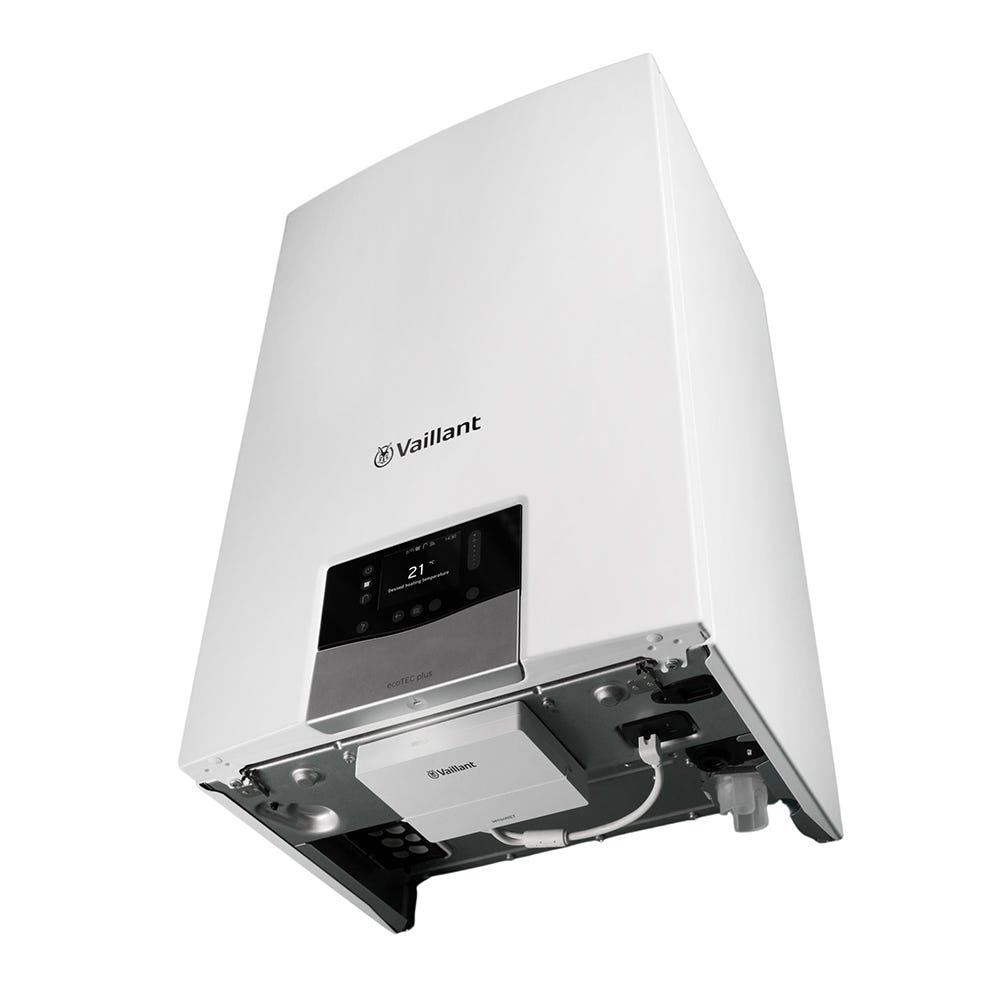

The Vaillant EcoTEC Plus 940 Combi Boiler is the latest development in the well-respected Vaillant Ecotec Plus range. As well as the expected high performance and reliability of past models, the EcoTEC Plus 940 is now smart home ready and tested to work safely with up to 20% hydrogen mix
Key Features
- IoniDETECT technology intelligently monitors gas combustion, allowing a wider modulation range of up to 1:10
- The exact case dimensions, boiler footprint, flue position and pipe connections as the previous model
- Vaillant boilers are fitted with a flow regulator set to achieve a temperature rise of 42°C
- Use voice command to change the temperature with myVaillant
- linBus technology allows for intelligent component monitoring
- Intuitive semi-touch interface for easy first time installation
- Control your appliance directly via the myVaillant app
- Works safely with up to 20% hydrogen mix
- 24/7 technical support with myVaillant app
- Easy to install and carry out maintenance
- Compatible with all Vaillant accessories

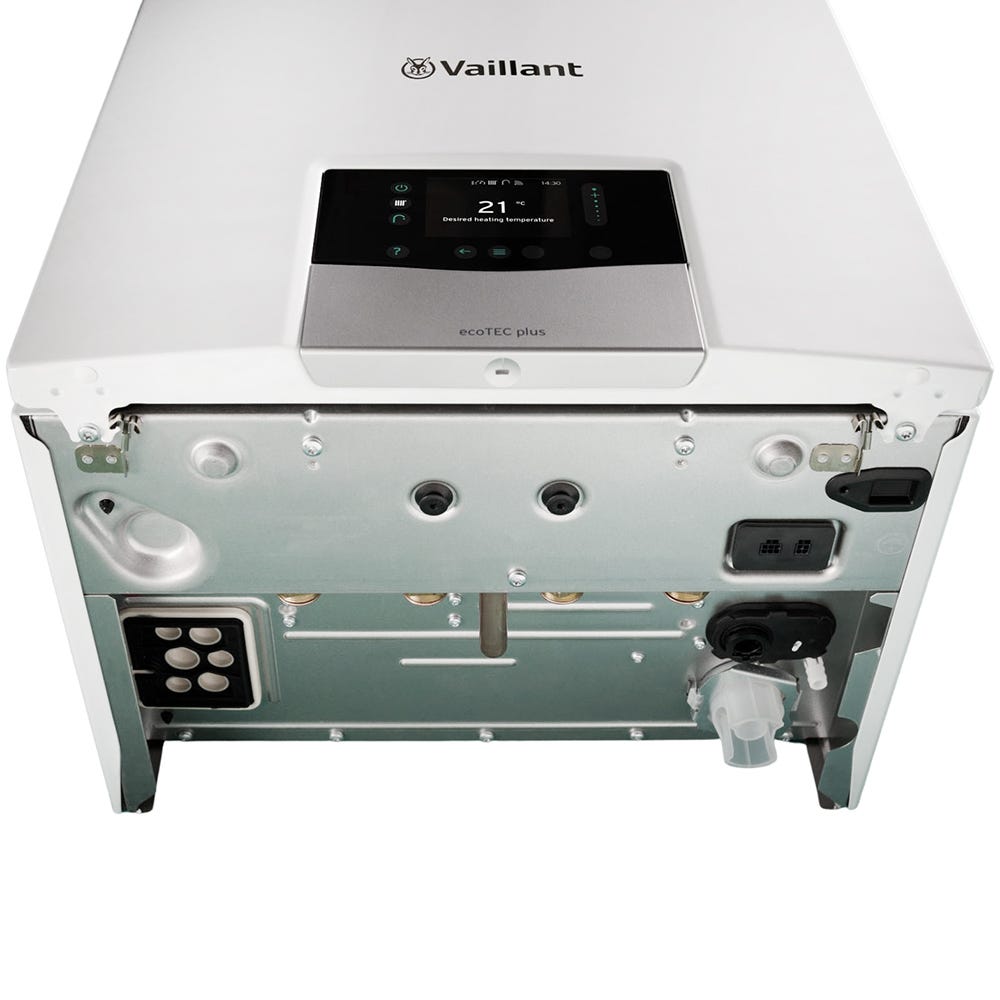

- Easy to access all major components
- Not LPG convertible
Technical Information
- Nominal heating output range at 50/30˚C (condensing mode): 5.0-32.3kW
- Nominal heating output range at 80/60˚C (non-condensing mode): 4.5-29.8kW
- Lowest water flow for operation (at Δ35˚C): 16.2 l/min
- Maximum heat output for water generation: 40.8kW
- Boiler dimensions: (H) 720 x (W) 440 x (D) 580mm
- Hot water output temperature range: 35-65°C
- Lowest water pressure to operate boiler: 0 bar
- Lowest water flow for operation: 2.0 l/min
- Top clearance (with 60/100 flue): 248mm
- Factory temperature setting: 75°C
- Flow temperature range: 30-85°C
- Bottom clearance: 180mm
- Front clearance: 500mm
- Side clearance: 5mm
- Modulation: 1:9.1
Guarantee
- 10 year extended guarantee when registered with Vaillant Advance
